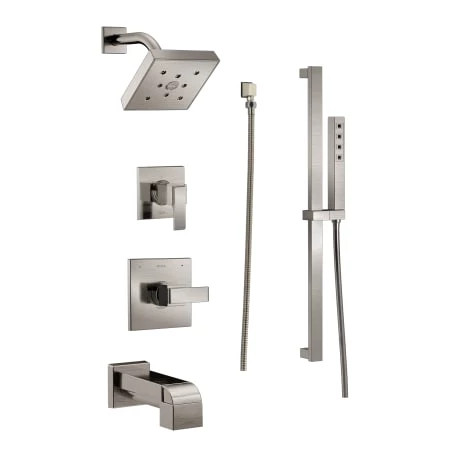

Delta Monitor 14 Series Pressure Balanced Tub and Shower System with Shower Head, Hand Shower, and Slide Bar – Includes Rough-In Valves

Delta DSS-Ara-1404 Shower System Includes:

• Ara 14 Series Tub and Shower Set (T14467)
• Ara 3 Setting Diverter (T11867)
• Hand Shower Set with 24″ Slide Bar and 60″ – 82″ Hose (51567)
• Wall Supply Elbow / Wall Union (50570)
• Mixing Rough-In Valve (R10000-UNWS)
• Diverter Rough-in Valve (R11000)

Do you like this Delta shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Delta shower.

Delta DSS-Ara-1404 Shower System Features:

• Covered under Delta’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Premier finishing process – finish will resist rust and corrosion through everyday use
• Single function H2Okinetic shower head
• Single function cartridge – dial controls temperature of water
• Pressure balancing valve cartridge with scald guard
• 3 setting 2 port diverter: 2 individual positions and 1 shared position
• Note: the RIGHT side diverter port MUST be capped
• Designed for use with standard 1/2″ or 3/4″ U.S. plumbing connections
• All necessary mounting hardware is included

Delta DSS-Ara-1404 Product Technologies / Benefits:

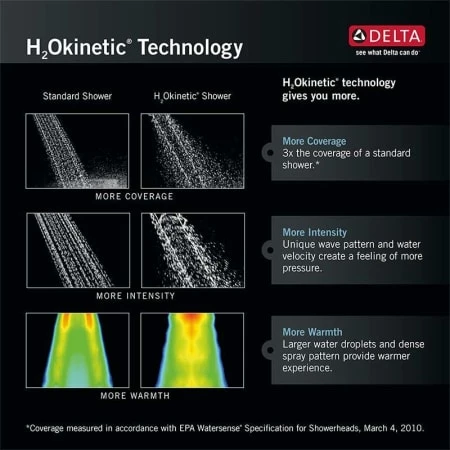

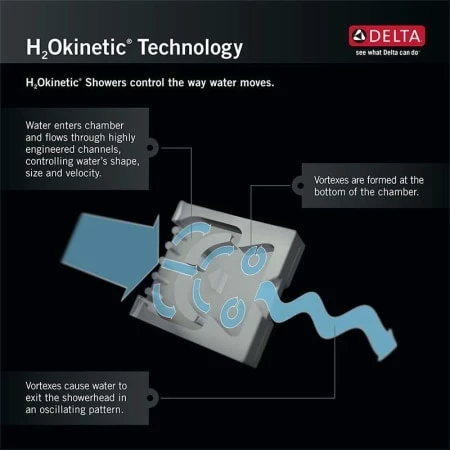

• • H2Okinetic®: Delta’s proprietary H2Okinetic® technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic® showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.

• • Monitor®: Delta Monitor® showers feature pressure balance valve cartridges, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe +/- 3°F. Monitor® valves also feature a high-temperature limit stop that can be adjusted to suit your shower needs.

• • MultiChoice® Valve: Flexibility is the big benefit of the MultiChoice® Universal Valve. Once the MultiChoice® rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.

Delta DSS-Ara-1404 Shower Valve Trim / Diverter Trim Specifications:

• 120° swinging temperature dial
• Temperature control includes pre-set safety stop with override
• Three function diverter with 2 individual positions, 1 shared position
• Valve Trim Dimensions: 6-1/2″ H x 6-1/2″ W
• Diverter Trim Dimensions: 5-1/4″ H x 4-1/2″ W
• Extra secure mounting assemblies
• All necessary mounting hardware and valves are included

Delta DSS-Ara-1404 Hand Shower / Slide Bar Specifications:

• Single function hand shower with H2Okinetic® spray pattern
• Dual check valves prevent and protect from backflow
• Wall supply is included with hand shower and slide bar
• Flow Rate: 2 gallons-per-minute
• Hand Shower Height: 8-1/2″
• Slide Bar Length: 24″
• Overall Slide Bar Length: 26-15/16″
• Hose Length: 60″ – 82″
• All necessary mounting hardware included

Delta DSS-Ara-1404 Shower Head Specifications:

• Single function H2Okinetic® shower head with H2Okinetic® spray pattern
• Shower Head Dimensions: 5-5/16″ W x 5-5/16″ L
• Shower Head Height: 2-3/4″
• Flow Rate: 2 gallons-per-minute
• Shower Arm Reach: 7″
• All necessary mounting hardware included

Delta DSS-Ara-1404 Tub Spout Specifications:

• Features a classic pull-up integrated diverter
• Unrestricted flow rate allows for rapid filling of tub
• Tub Spout Reach: 6-1/4″
• All necessary mounting hardware included
