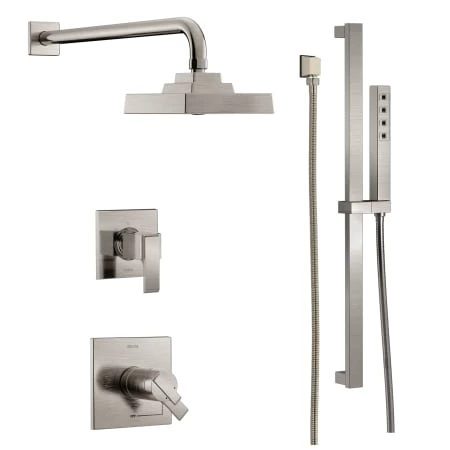

Delta TempAssure 17T Series Thermostatic Shower System with Integrated Volume Control, Shower Head, and Hand Shower – Includes Rough-In Valves

Delta Ara DSS-Ara-17T01 Shower System Includes:

• Ara 17T Series Shower Set (T17T267)
• Ara 3 Setting Diverter (T11867)
• Hand Shower Set with 24″ Slide Bar and 60″ Hose (51567)
• Wall Supply Elbow / Wall Union (50570)
• Mixing Rough-In Valve (R10000-UNWSHF) Shower Only NO Tub Outlet
• Diverter Rough-in Valve (R11000)

Do you like this Delta shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Delta shower.

Delta Ara DSS-Ara-17T01 Shower System Features:

• Covered under Delta’s Limited Lifetime Faucet and Finish Warranty
• Thermostatic Operation for Precise Temperature Control
• Dual Function: Handle Adjusts Volume; Dial on Handle Controls Temperature
• TempAssure Valve Keeps Water Temperature to +/-3°F
• 3 setting 2 port diverter: 2 individual positions and 1 shared position
• Note: the RIGHT side diverter port MUST be capped
• Self-Cleaning H2Okinetic Spray Raincan Showerhead
• H2Okinetic Single Function Hand Shower
• 24″ Slide Bar with Adjustable Slide Hand Shower Holder
• 60″ – 82″ Long Stretchable Metal Hose in Matching Finish
• Square Wall Elbow (1/2″ IPS Inlet, 1/2″ IPS Outlet)
• Integrated Service Stops on Mixing Rough-In Valve

Delta DSS-Ara-17T01 Delta Shower System Specifications:

• Shower Trim Dimensions: 6-1/2″W x 6-1/2″H
• Diverter Trim Dimensions: 4-1/2″W x 5-1/4″H
• Hand Shower Dimension: 7-7/8″H
• Shower Head Dimensions: 5-5/16″W x 2-3/4″H
• Slide Bar Dimensions: 24″H x 1-7/16″D
• Wall Elbow Dimensions: 2-1/8″W x 2-1/8″H x 1-1/16″D
• Shower Arm Flange Dimensions: 2″W x 2″H
• Shower Arm Dimension: 16.5″
• Shower Head Flow Rate: 1.75 gpm @ 80psi
• Hand Shower Flow Rate: 1.75 gpm @ 80 psi
• Rough-In Valve Flow Rate: 9.4 gpm @ 60 psi

Why Buy Delta Ara DSS-Ara-17T01 From Us:

• We are a Delta Preferred Authorized Online Dealer for Guaranteed Warranty Coverage
• Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
• A Showroom Experience from the Comfort of Your Home or Office

Delta Ara DSS-Ara-17T01 Shower Systems Technologies / Benefits:

• H2Okinetic: Delta’s proprietary H2Okinetic technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.
• TempAssure: Delta’s higher-end dual function TempAssure thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.
• MultiChoice Valve: Flexibility is the big benefit of the MultiChoice Universal Valve. Once the MultiChoice rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.
• Eco Friendly: Delta’s Eco Friendly showers do more than protect our nation’s water resources. By using less hot water, they extend your hot water supply – meaning you can enjoy longer, warmer showers. Those who take quick showers will enjoy the reduced water-heating costs alongside reduced water bills.
• Integrated Volume Control: This Smart Feature provides separate controls for the temperature and volume on one trim plate, allowing you to set the temperature and keep it consistent shower after shower.
