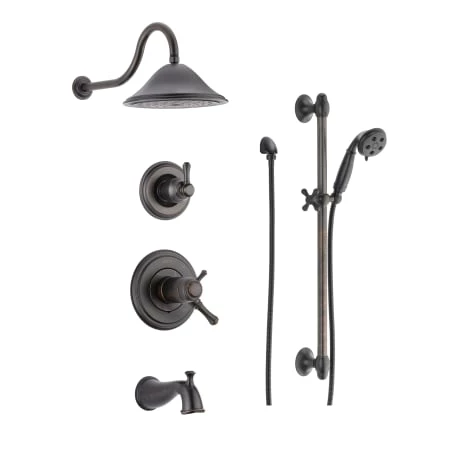

Delta TempAssure 17T Series Thermostatic Tub and Shower System with Volume Control, Shower Head, Hand Shower, and Slide Bar – Includes Rough-In Valves

Delta DSS-Cassidy-17T04 Shower System Includes:

• Cassidy 17T Series Valve Trim (T17T497)
• Cassidy 3 Setting Diverter (T11897-LHP)
• Hand Shower Set with 23-3/4″ Slide Bar and 60″ – 82″ Hose (51308)
• Wall Supply Elbow / Wall Union (50560)
• Single Lever Diverter Handle (H597)
• Mixing Rough-In Valve (R10000-UNWS)
• Diverter Rough-in Valve (R11000)

Delta DSS-Cassidy-17T04 Shower System Features:

• Covered under Delta’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Premier finishing process – finish will resist rust and corrosion through everyday use
• Single function shower head
• Dual function cartridge – separate volume and temperature controls
• Thermostatic valve cartridge with scald guard
• 3 setting 2 port diverter: 2 individual positions and 1 shared position
• Note: the RIGHT side diverter port MUST be capped
• Designed for use with standard 1/2″ or 3/4″ U.S. plumbing connections
• All necessary mounting hardware is included

Delta DSS-Cassidy-17T04 Product Technologies / Benefits:

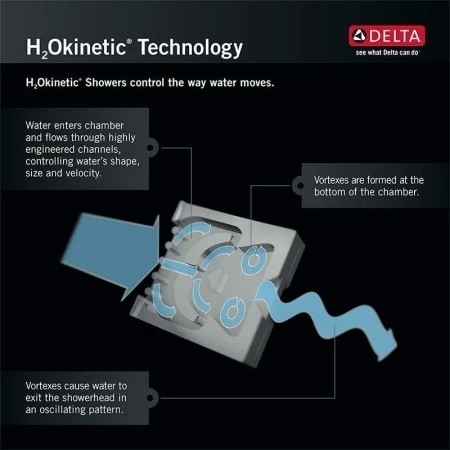

• • H2Okinetic®: Delta’s proprietary H2Okinetic® technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic® showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.

• • TempAssure®: Delta’s higher-end dual function TempAssure® thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.

• • MultiChoice® Valve: Flexibility is the big benefit of the MultiChoice® Universal Valve. Once the MultiChoice® rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.

• • Independent Volume Control: Dual-control valve trims are what separate Delta showers from the competition. The top, smaller handle controls temperature, while the bottom, larger dial controls the water volume (flow rate). The distinct advantage to this is that you can set the temperature control to a temperature you like, and then leave it, turning the shower on and off each time with the volume control. You’ll never have to fuss with the temperature again.

Delta DSS-Cassidy-17T04 Shower Valve Trim / Diverter Trim Specifications:

• Temperature control includes pre-set safety stop with override
• Three function diverter with 2 individual positions, 1 shared position
• Valve trim features integrated volume control handle
• Valve Trim Diameter: 7″
• Diverter Trim Diameter: 4-1/2″
• Extra secure mounting assemblies
• All necessary mounting hardware and valves are included

Delta DSS-Cassidy-17T04 Hand Shower / Slide Bar Specifications:

• Multi-function hand shower with three spray patterns – H2Okinetic® spray, massage spray, and trickle flow
• Dual check valves prevent and protect from backflow
• Wall supply is included with hand shower and slide bar
• Flow Rate: 2 gallons-per-minute
• Hand Shower Height: 9-5/16″
• Slide Bar Length: 23-3/4″
• Overall Slide Bar Length: 29″
• Hose Length: 60″ – 82″
• All necessary mounting hardware included

Delta DSS-Cassidy-17T04 Shower Head Specifications:

• Single function shower head with full spray pattern
• Shower Head Diameter: 9-3/8″
• Shower Head Height: 4-1/4″
• Flow Rate: 2.5 gallons-per-minute
• Shower Arm Reach: 16″
• All necessary mounting hardware included

Delta DSS-Cassidy-17T04 Tub Spout Specifications:

• Features a classic pull-up integrated diverter
• Unrestricted flow rate allows for rapid filling of tub
• Tub Spout Reach: 6-1/2″
• All necessary mounting hardware included
